Запатентована конструкція Advocate сприяє плавному введенню, проштовхуванню та відстежуванню під час навігації по складних ураженнях.

Categories: Балонні катетери, Інтервенції, Периферичні інтервенції

Запатентований дизайн Advocate забезпечує плавне введення, можливість переміщення і відстеження при навігації по складним ураженням.

Over-The-Wire Coaxial System
designed to track through long, diffuse lesions

Serene™ Hydrophilic Technology
for durable lubricity in balloon delivery

Low Lesion Entry Profile
helps cross challenging blockages

Seamless Transitions
result in a low crossing profile

EXPAND

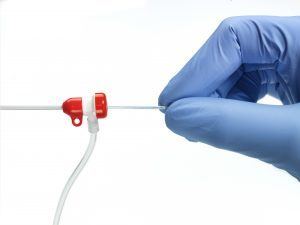

With the most sizes available on 4 F, Advocate expands clinical treatment options and promotes better patient outcomes.

Up To 7mm Diameter On 4 F*
expands the treatment options on 0.018”
*Except for the 7.0 mm x 250 mm catheters which are 5 F

16 ATM Maximum Rated Burst Pressure
to handle resistant lesions

20-300 mm Lengths
for uniform dilation with fewer inflations

DELIVER
Advocate’s ThinTek™ technology is engineered for exceptional trackability, reliability, and vessel conformability.

Advocate-Inflated-Styled-on-White ThinTek™ Technology
balances power and conformability for versatile performance

Trifold Design
allows multiple inflations and tight rewrap

Transitionless Bond
for safe and sleek withdrawal

Додаткова інформація

Виробник	Merit

Документи

Advocate PTA Catheter

Advocate^™ PTA Catheter Instructions for Use

Інформація для замовлення

CATALOG NUMBER	GUIDE WIRE	SHEATH COMPATIBILITY	BALLOON OUTER DIAMETERS	BALLOON LENGTH (MM)	CATHETER LENGTH (CM)
A18020020130	0.018″ Wireguided	4F (1.3 mm)	2.0 mm	20 mm	130 cm
A18020020150	0.018″ Wireguided	4F (1.3 mm)	2.0 mm	20 mm	150 cm
A18020060090	0.018″ Wireguided	4F (1.3 mm)	2.0 mm	60 mm	90 cm
A18020060130	0.018″ Wireguided	4F (1.3 mm)	2.0 mm	60 mm	130 cm
A18020060150	0.018″ Wireguided	4F (1.3 mm)	2.0 mm	60 mm	150 cm
A18020080090	0.018″ Wireguided	4F (1.3 mm)	2.0 mm	80 mm	90 cm
A18020080130	0.018″ Wireguided	4F (1.3 mm)	2.0 mm	80 mm	130 cm
A18020080150	0.018″ Wireguided	4F (1.3 mm)	2.0 mm	80 mm	150 cm
A18020100090	0.018″ Wireguided	4F (1.3 mm)	2.0 mm	100 mm	90 cm
A18020100130	0.018″ Wireguided	4F (1.3 mm)	2.0 mm	100 mm	130 cm
A18020100150	0.018″ Wireguided	4F (1.3 mm)	2.0 mm	100 mm	150 cm
A18020150130	0.018″ Wireguided	4F (1.3 mm)	2.0 mm	150 mm	130 cm
A18020150150	0.018″ Wireguided	4F (1.3 mm)	2.0 mm	150 mm	150 cm
A18020200130	0.018″ Wireguided	4F (1.3 mm)	2.0 mm	200 mm	130 cm
A18020200150	0.018″ Wireguided	4F (1.3 mm)	2.0 mm	200 mm	150 cm
A18020250130	0.018″ Wireguided	4F (1.3 mm)	2.0 mm	250 mm	130 cm
A18020250150	0.018″ Wireguided	4F (1.3 mm)	2.0 mm	250 mm	150 cm
A18020300130	0.018″ Wireguided	4F (1.3 mm)	2.0 mm	300 mm	130 cm
A18020300150	0.018″ Wireguided	4F (1.3 mm)	2.0 mm	300 mm	150 cm
A18025060090	0.018″ Wireguided	4F (1.3 mm)	2.5 mm	60 mm	90 cm
A18025060130	0.018″ Wireguided	4F (1.3 mm)	2.5 mm	60 mm	130 cm
A18025060150	0.018″ Wireguided	4F (1.3 mm)	2.5 mm	60 mm	150 cm
A18025080090	0.018″ Wireguided	4F (1.3 mm)	2.5 mm	80 mm	90 cm
A18025080130	0.018″ Wireguided	4F (1.3 mm)	2.5 mm	80 mm	130 cm
A18025080150	0.018″ Wireguided	4F (1.3 mm)	2.5 mm	80 mm	150 cm
A18025100090	0.018″ Wireguided	4F (1.3 mm)	2.5 mm	100 mm	90 cm
A18025100130	0.018″ Wireguided	4F (1.3 mm)	2.5 mm	100 mm	130 cm
A18025100150	0.018″ Wireguided	4F (1.3 mm)	2.5 mm	100 mm	150 cm
A18025150130	0.018″ Wireguided	4F (1.3 mm)	2.5 mm	150 mm	130 cm
A18025150150	0.018″ Wireguided	4F (1.3 mm)	2.5 mm	150 mm	150 cm
A18025200130	0.018″ Wireguided	4F (1.3 mm)	2.5 mm	200 mm	130 cm
A18025200150	0.018″ Wireguided	4F (1.3 mm)	2.5 mm	200 mm	150 cm
A18025250130	0.018″ Wireguided	4F (1.3 mm)	2.5 mm	250 mm	130 cm
A18025250150	0.018″ Wireguided	4F (1.3 mm)	2.5 mm	250 mm	150 cm
A18025300130	0.018″ Wireguided	4F (1.3 mm)	2.5 mm	300 mm	130 cm
A18025300150	0.018″ Wireguided	4F (1.3 mm)	2.5 mm	300 mm	150 cm
A18030040090	0.018″ Wireguided	4F (1.3 mm)	3.0 mm	40 mm	90 cm
A18030040130	0.018″ Wireguided	4F (1.3 mm)	3.0 mm	40 mm	130 cm
A18030040150	0.018″ Wireguided	4F (1.3 mm)	3.0 mm	40 mm	150 cm
A18030060090	0.018″ Wireguided	4F (1.3 mm)	3.0 mm	60 mm	90 cm
A18030060130	0.018″ Wireguided	4F (1.3 mm)	3.0 mm	60 mm	130 cm
A18030060150	0.018″ Wireguided	4F (1.3 mm)	3.0 mm	60 mm	150 cm
A18030080090	0.018″ Wireguided	4F (1.3 mm)	3.0 mm	80 mm	90 cm
A18030080130	0.018″ Wireguided	4F (1.3 mm)	3.0 mm	80 mm	130 cm
A18030080150	0.018″ Wireguided	4F (1.3 mm)	3.0 mm	80 mm	150 cm
A18030100090	0.018″ Wireguided	4F (1.3 mm)	3.0 mm	100 mm	90 cm
A18030100130	0.018″ Wireguided	4F (1.3 mm)	3.0 mm	100 mm	130 cm
A18030100150	0.018″ Wireguided	4F (1.3 mm)	3.0 mm	100 mm	150 cm
A18030150090	0.018″ Wireguided	4F (1.3 mm)	3.0 mm	150 mm	90 cm
A18030150130	0.018″ Wireguided	4F (1.3 mm)	3.0 mm	150 mm	130 cm
A18030150150	0.018″ Wireguided	4F (1.3 mm)	3.0 mm	150 mm	150 cm
A18030200090	0.018″ Wireguided	4F (1.3 mm)	3.0 mm	200 mm	90 cm
A18030200130	0.018″ Wireguided	4F (1.3 mm)	3.0 mm	200 mm	130 cm
A18030200150	0.018″ Wireguided	4F (1.3 mm)	3.0 mm	200 mm	150 cm
A18030250130	0.018″ Wireguided	4F (1.3 mm)	3.0 mm	250 mm	130 cm
A18030250150	0.018″ Wireguided	4F (1.3 mm)	3.0 mm	250 mm	150 cm
A18030300130	0.018″ Wireguided	4F (1.3 mm)	3.0 mm	300 mm	130 cm
A18030300150	0.018″ Wireguided	4F (1.3 mm)	3.0 mm	300 mm	150 cm
A18035040090	0.018″ Wireguided	4F (1.3 mm)	3.5 mm	40 mm	90 cm
A18035040130	0.018″ Wireguided	4F (1.3 mm)	3.5 mm	40 mm	130 cm
A18035040150	0.018″ Wireguided	4F (1.3 mm)	3.5 mm	40 mm	150 cm
A18035060090	0.018″ Wireguided	4F (1.3 mm)	3.5 mm	60 mm	90 cm
A18035060130	0.018″ Wireguided	4F (1.3 mm)	3.5 mm	60 mm	130 cm
A18035060150	0.018″ Wireguided	4F (1.3 mm)	3.5 mm	60 mm	150 cm
A18035080090	0.018″ Wireguided	4F (1.3 mm)	3.5 mm	80 mm	90 cm
A18035080130	0.018″ Wireguided	4F (1.3 mm)	3.5 mm	80 mm	130 cm
A18035080150	0.018″ Wireguided	4F (1.3 mm)	3.5 mm	80 mm	150 cm
A18035100090	0.018″ Wireguided	4F (1.3 mm)	3.5 mm	100 mm	90 cm
A18035100130	0.018″ Wireguided	4F (1.3 mm)	3.5 mm	100 mm	130 cm
A18035100150	0.018″ Wireguided	4F (1.3 mm)	3.5 mm	100 mm	150 cm
A18035150090	0.018″ Wireguided	4F (1.3 mm)	3.5 mm	150 mm	90 cm
A18035150130	0.018″ Wireguided	4F (1.3 mm)	3.5 mm	150 mm	130 cm
A18035150150	0.018″ Wireguided	4F (1.3 mm)	3.5 mm	150 mm	150 cm
A18035200090	0.018″ Wireguided	4F (1.3 mm)	3.5 mm	200 mm	90 cm
A18035200130	0.018″ Wireguided	4F (1.3 mm)	3.5 mm	200 mm	130 cm
A18035200150	0.018″ Wireguided	4F (1.3 mm)	3.5 mm	200 mm	150 cm
A18035250130	0.018″ Wireguided	4F (1.3 mm)	3.5 mm	250 mm	130 cm
A18035250150	0.018″ Wireguided	4F (1.3 mm)	3.5 mm	250 mm	150 cm
A18040040045	0.018″ Wireguided	4F (1.3 mm)	4.0 mm	40 mm	45 cm
A18040040090	0.018″ Wireguided	4F (1.3 mm)	4.0 mm	40 mm	90 cm
A18040040130	0.018″ Wireguided	4F (1.3 mm)	4.0 mm	40 mm	130 cm
A18040040150	0.018″ Wireguided	4F (1.3 mm)	4.0 mm	40 mm	150 cm
A18040060045	0.018″ Wireguided	4F (1.3 mm)	4.0 mm	60 mm	45 cm
A18040060090	0.018″ Wireguided	4F (1.3 mm)	4.0 mm	60 mm	90 cm
A18040060130	0.018″ Wireguided	4F (1.3 mm)	4.0 mm	60 mm	130 cm
A18040060150	0.018″ Wireguided	4F (1.3 mm)	4.0 mm	60 mm	150 cm
A18040080090	0.018″ Wireguided	4F (1.3 mm)	4.0 mm	80 mm	90 cm
A18040080130	0.018″ Wireguided	4F (1.3 mm)	4.0 mm	80 mm	130 cm
A18040080150	0.018″ Wireguided	4F (1.3 mm)	4.0 mm	80 mm	150 cm
A18040100090	0.018″ Wireguided	4F (1.3 mm)	4.0 mm	100 mm	90 cm
A18040100130	0.018″ Wireguided	4F (1.3 mm)	4.0 mm	100 mm	130 cm
A18040100150	0.018″ Wireguided	4F (1.3 mm)	4.0 mm	100 mm	150 cm
A18040150090	0.018″ Wireguided	4F (1.3 mm)	4.0 mm	150 mm	90 cm
A18040150130	0.018″ Wireguided	4F (1.3 mm)	4.0 mm	150 mm	130 cm
A18040150150	0.018″ Wireguided	4F (1.3 mm)	4.0 mm	150 mm	150 cm
A18040200090	0.018″ Wireguided	4F (1.3 mm)	4.0 mm	200 mm	90 cm
A18040200130	0.018″ Wireguided	4F (1.3 mm)	4.0 mm	200 mm	130 cm
A18040200150	0.018″ Wireguided	4F (1.3 mm)	4.0 mm	200 mm	150 cm
A18040250090	0.018″ Wireguided	4F (1.3 mm)	4.0 mm	250 mm	90 cm
A18040250130	0.018″ Wireguided	4F (1.3 mm)	4.0 mm	250 mm	130 cm
A18040250150	0.018″ Wireguided	4F (1.3 mm)	4.0 mm	250 mm	150 cm
A18050040045	0.018″ Wireguided	4F (1.3 mm)	5.0 mm	40 mm	45 cm
A18050040090	0.018″ Wireguided	4F (1.3 mm)	5.0 mm	40 mm	90 cm
A18050040130	0.018″ Wireguided	4F (1.3 mm)	5.0 mm	40 mm	130 cm
A18050040150	0.018″ Wireguided	4F (1.3 mm)	5.0 mm	40 mm	150 cm
A18050060045	0.018″ Wireguided	4F (1.3 mm)	5.0 mm	60 mm	45 cm
A18050060090	0.018″ Wireguided	4F (1.3 mm)	5.0 mm	60 mm	90 cm
A18050080090	0.018″ Wireguided	4F (1.3 mm)	5.0 mm	80 mm	90 cm
A18050080130	0.018″ Wireguided	4F (1.3 mm)	5.0 mm	80 mm	130 cm
A18050080150	0.018″ Wireguided	4F (1.3 mm)	5.0 mm	80 mm	150 cm
A18050100090	0.018″ Wireguided	4F (1.3 mm)	5.0 mm	100 mm	90 cm
A18050100130	0.018″ Wireguided	4F (1.3 mm)	5.0 mm	100 mm	130 cm
A18050100150	0.018″ Wireguided	4F (1.3 mm)	5.0 mm	100 mm	150 cm
A18050150090	0.018″ Wireguided	4F (1.3 mm)	5.0 mm	150 mm	90 cm
A18050150130	0.018″ Wireguided	4F (1.3 mm)	5.0 mm	150 mm	130 cm
A18050150150	0.018″ Wireguided	4F (1.3 mm)	5.0 mm	150 mm	150 cm
A18050200090	0.018″ Wireguided	4F (1.3 mm)	5.0 mm	200 mm	90 cm
A18050200130	0.018″ Wireguided	4F (1.3 mm)	5.0 mm	200 mm	130 cm
A18050200150	0.018″ Wireguided	4F (1.3 mm)	5.0 mm	200 mm	150 cm
A18050250090	0.018″ Wireguided	4F (1.3 mm)	5.0 mm	250 mm	90 cm
A18050250130	0.018″ Wireguided	4F (1.3 mm)	5.0 mm	250 mm	130 cm
A18050250150	0.018″ Wireguided	4F (1.3 mm)	5.0 mm	250 mm	150 cm
A18060040045	0.018″ Wireguided	4F (1.3 mm)	6.0 mm	40 mm	45 cm
A18060040090	0.018″ Wireguided	4F (1.3 mm)	6.0 mm	40 mm	90 cm
A18060040130	0.018″ Wireguided	4F (1.3 mm)	6.0 mm	40 mm	130 cm
A18060040150	0.018″ Wireguided	4F (1.3 mm)	6.0 mm	40 mm	150 cm
A18060060045	0.018″ Wireguided	4F (1.3 mm)	6.0 mm	60 mm	45 cm
A18060060090	0.018″ Wireguided	4F (1.3 mm)	6.0 mm	60 mm	90 cm
A18060080090	0.018″ Wireguided	4F (1.3 mm)	6.0 mm	80 mm	90 cm
A18060080130	0.018″ Wireguided	4F (1.3 mm)	6.0 mm	80 mm	130 cm
A18060080150	0.018″ Wireguided	4F (1.3 mm)	6.0 mm	80 mm	150 cm
A18060100090	0.018″ Wireguided	4F (1.3 mm)	6.0 mm	100 mm	90 cm
A18060100130	0.018″ Wireguided	4F (1.3 mm)	6.0 mm	100 mm	130 cm
A18060100150	0.018″ Wireguided	4F (1.3 mm)	6.0 mm	100 mm	150 cm
A18060150090	0.018″ Wireguided	4F (1.3 mm)	6.0 mm	150 mm	90 cm
A18060150130	0.018″ Wireguided	4F (1.3 mm)	6.0 mm	150 mm	130 cm
A18060150150	0.018″ Wireguided	4F (1.3 mm)	6.0 mm	150 mm	150 cm
A18060200090	0.018″ Wireguided	4F (1.3 mm)	6.0 mm	200 mm	90 cm
A18060200130	0.018″ Wireguided	4F (1.3 mm)	6.0 mm	200 mm	130 cm
A18060200150	0.018″ Wireguided	4F (1.3 mm)	6.0 mm	200 mm	150 cm
A18060250090	0.018″ Wireguided	4F (1.3 mm)	6.0 mm	250 mm	90 cm
A18060250130	0.018″ Wireguided	4F (1.3 mm)	6.0 mm	250 mm	130 cm
A18060250150	0.018″ Wireguided	4F (1.3 mm)	6.0 mm	250 mm	150 cm
A18070040045	0.018″ Wireguided	4F (1.3 mm)	7.0 mm	40 mm	45 cm
A18070040090	0.018″ Wireguided	4F (1.3 mm)	7.0 mm	40 mm	90 cm
A18070060045	0.018″ Wireguided	4F (1.3 mm)	7.0 mm	60 mm	45 cm
A18070060090	0.018″ Wireguided	4F (1.3 mm)	7.0 mm	60 mm	90 cm
A18070080090	0.018″ Wireguided	4F (1.3 mm)	7.0 mm	80 mm	90 cm
A18070080130	0.018″ Wireguided	4F (1.3 mm)	7.0 mm	80 mm	130 cm
A18070080150	0.018″ Wireguided	4F (1.3 mm)	7.0 mm	80 mm	150 cm
A18070100090	0.018″ Wireguided	4F (1.3 mm)	7.0 mm	100 mm	90 cm
A18070100130	0.018″ Wireguided	4F (1.3 mm)	7.0 mm	100 mm	150 cm
A18070100150	0.018″ Wireguided	4F (1.3 mm)	7.0 mm	100 mm	150 cm
A18070150090	0.018″ Wireguided	4F (1.3 mm)	7.0 mm	150 mm	90 cm
A18070150130	0.018″ Wireguided	4F (1.3 mm)	7.0 mm	150 mm	130 cm
A18070150150	0.018″ Wireguided	4F (1.3 mm)	7.0 mm	150 mm	150 cm
A18070200130	0.018″ Wireguided	4F (1.3 mm)	7.0 mm	200 mm	130 cm
A18070200150	0.018″ Wireguided	4F (1.3 mm)	7.0 mm	200 mm	150 cm
A18070250130	0.018″ Wireguided	5F (1.7 mm)	7.0 mm	250 mm	130 cm
A18070250150	0.018″ Wireguided	5F (1.7 mm)	7.0 mm	250 mm	150 cm
A18080040090	0.018″ Wireguided	5F (1.7 mm)	8.0 mm	40 mm	90 cm
A18080060090	0.018″ Wireguided	5F (1.7 mm)	8.0 mm	60 mm	90 cm
A18080080090	0.018″ Wireguided	5F (1.7 mm)	8.0 mm	80 mm	90 cm
A18080100090	0.018″ Wireguided	5F (1.7 mm)	8.0 mm	100 mm	90 cm
A18090040090	0.018″ Wireguided	5F (1.7 mm)	9.0 mm	40 mm	90 cm
A18090060090	0.018″ Wireguided	5F (1.7 mm)	9.0 mm	60 mm	90 cm
A18090080090	0.018″ Wireguided	5F (1.7 mm)	9.0 mm	80 mm	90 cm

Катетер Advocate™ 0.018″ PTA

Додаткова інформація

Документи

Інформація для замовлення

Супутні товари

Гемостатичний клапанний адаптер Merit® HVA

HeRO® Graft

Крива ангіографічна голка Merit Advance®
